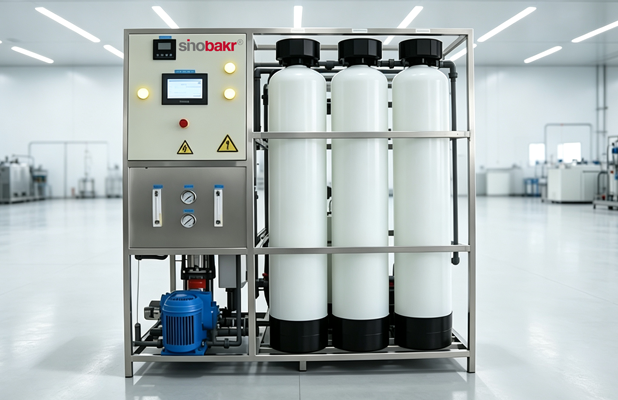

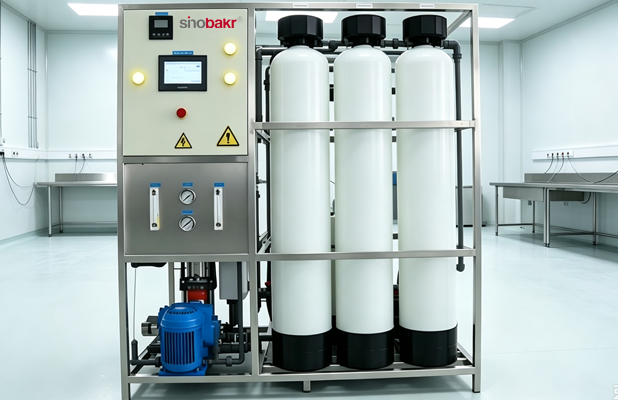

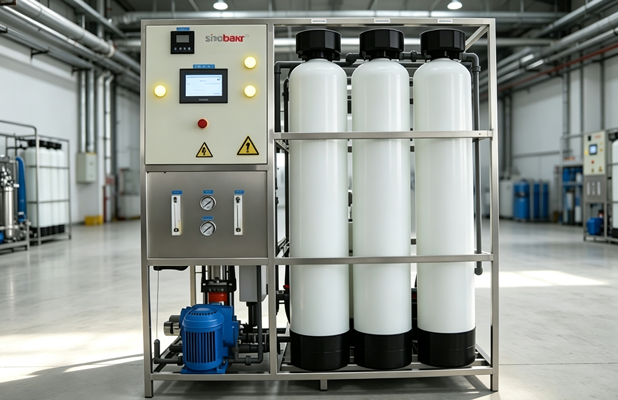

The industrial reverse‑osmosis pure‑water system is professional water‑treatment equipment for producing high‑purity process water.

I. Technical Parameters of Industrial Water Purifier

1. Water‑making Capacity: 0.25T/H ~ 50 tons per hour

2. Main Pipe Diameter: DN15‑DN110

3. Working Pressure: ≤1.6 MPa

4. Permeate Water Conductivity: 10μS/cm, 5μS/cm, 2μS/cm; Resistivity: 5 MΩ·cm, 10 MΩ·cm, 12 MΩ·cm, 15 MΩ·cm, 17 MΩ·cm, 18 MΩ·cm

5. Feed‑water Source: Municipal tap water, groundwater or other surface water

6. Inlet Water Temperature: 5‑35℃

7. Power Supply: 380V/50HZ; 220V is available for small‑size units

8. Inlet Water TDS: ≤400ppm

II. Various Water‑treatment Processes for Industrial Water Purifiers

Industrial water purifiers consist of reverse osmosis, ion‑exchange resin double‑bed, EDI and other processes. The preparation method shall be selected according to different industrial applications and inlet water quality.

1. Traditional water‑treatment process for electronic‑grade ultrapure water by ion‑exchange resin: Raw water → Multi‑media filter → Activated carbon filter → Security filter → Cation exchange bed → Anion exchange bed → Mixed bed → Post‑security filter → Water‑consumption point

2. Process for electronic‑grade ultrapure water combining reverse osmosis equipment and ion‑exchange equipment: Raw water → Multi‑media filter → Activated carbon filter → Security filter → Reverse osmosis unit → Mixed bed → Ultrapure water tank → Post‑security filter → Water‑consumption point

3. New‑generation environmentally‑friendly & cost‑effective ultrapure‑water production process combining reverse osmosis and electrodeionization (EDI), with great development potential: Raw water → Multi‑media filter → Activated carbon filter → Security filter → Reverse osmosis unit → Electrodeionization (EDI) → Ultrapure water tank → Ultrapure‑water pump → Post‑security filter → Water‑consumption point

Multi‑stage pre‑filtration together with RO membrane elements filter out suspended solids, organic pollutants, dissolved salts and other contaminants from feed water, to obtain stable pure‑water output that meets industrial production standards.

Equipped with intelligent control panel, the unit supports fully‑automatic running, auto flushing for RO membranes and water‑supply‑&‑water‑cut‑off linkage protection.

Low running‑cost, compact layout and space‑saving installation. It can be customized according to customers’ water‑yield requirement and water‑quality standard.

Suitable for supporting chiller, solvent distillation recovery machine, hydrocarbon cleaning equipment and other industrial production lines.
