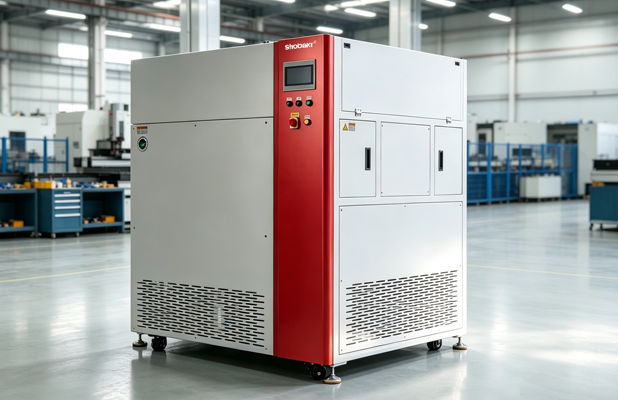

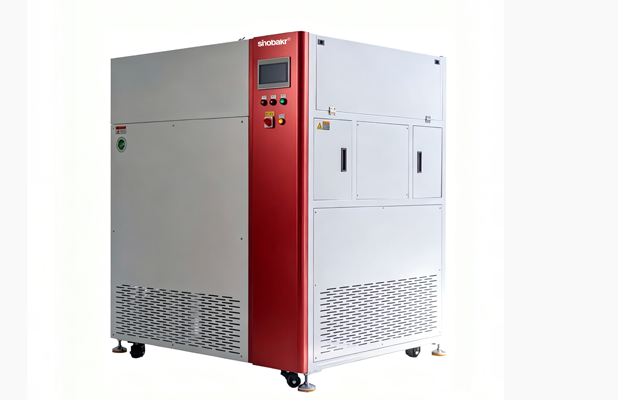

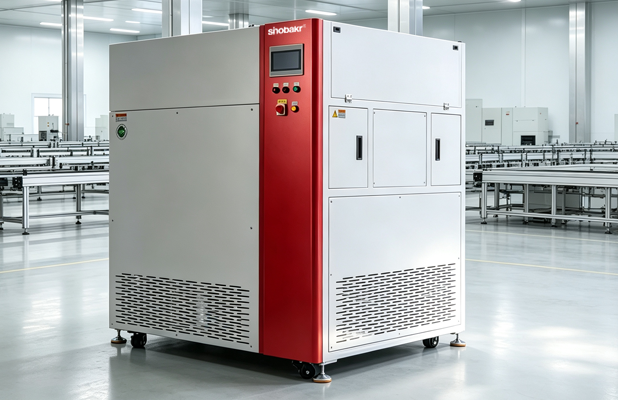

Product Type：Low‑Temperature Evaporation Equipment
Release Time：2026-08-27 15:53:20
Product Description：Working Principle of Low‑Temperature EvaporatorCreate negative‑pressure vacuum environment to lower the boiling point of water. Waste liquid evaporates at low···
Phone：+8613270982089
Working Principle of Low‑Temperature Evaporator
Create negative‑pressure vacuum environment to lower the boiling point of water. Waste liquid evaporates at low temperature. Water vapor is condensed into clean distillate, while salts, oil and heavy‑metal contaminants remain as concentrated residue, realizing waste‑liquid volume reduction.
High volume‑reduction rate up to 80‑95%, greatly cut hazardous‑waste disposal cost.
Evaporate at 30‑45℃ under vacuum condition, avoid thermal cracking of oil & organic matters, fully sealed operation for safety.
Heat‑pump energy recycling, no steam boiler required, only electric power needed.
Distillate water can be reused in production, realize resource recovery.
Fully‑automatic PLC control, compact skid‑mounted design, easy installation.
Suitable for cutting fluid wastewater, electroplating wastewater, RO concentrate and various industrial waste liquids.
| Model | Dimension (mm) | Daily Capacity | Monthly Capacity (ton/month) | Total Power (KW) | Concentration Ratio |
|---|---|---|---|---|---|
| BK‑100L | 8208001105 | 100L | 3T | 1.2 | 80~95% |
| BK‑200L | 125010001600 | 200L | 6T | 2.2 | 80~95% |
| BK‑300L | 130013001650 | 300L | 9T | 3.2 | 80~95% |
| BK‑500L | 145013002000 | 500L | 15T | 4.8 | 80~95% |
| BK‑1000L | 170015002000 | 1T | 30T | 9.0 | 80~95% |
| BK‑2000L | 280018002400 | 2T | 60T | 17.0 | 80~95% |
| BK‑3000L | 210019002400 | 3T | 90T | 28.0 | 80~95% |
| BK‑5000L | 250019002400 | 5T | 150T | 50.0 | 80~95% |
| BK‑10T | 410031003200 | 10T | 300T | 90.0 | 80~95% |
| BK‑20T | 840031003200 | 20T | 600T | 180.0 | 80~95% |
