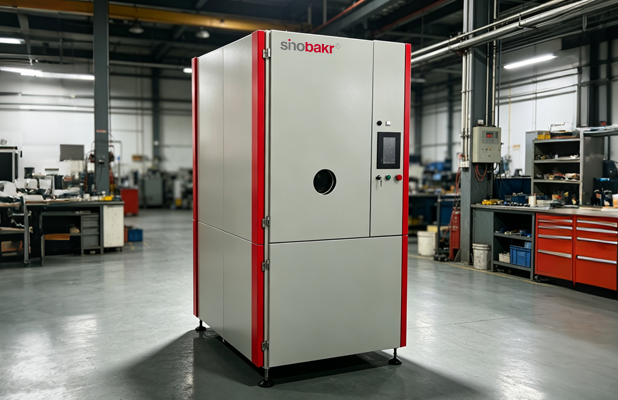

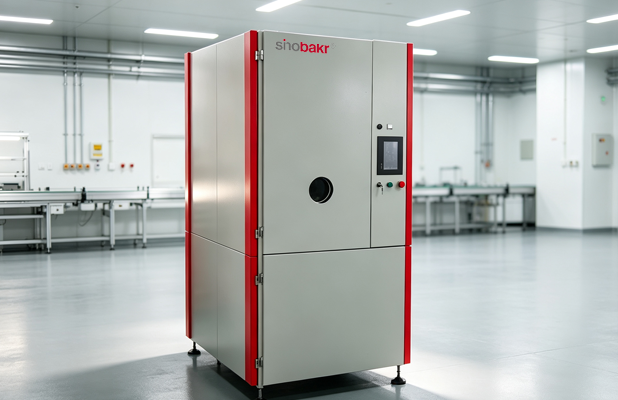

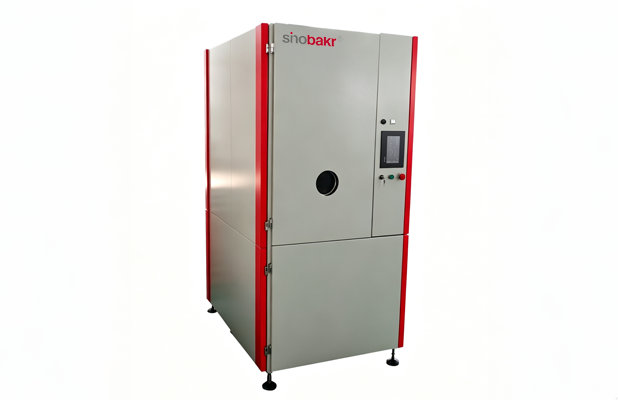

Vacuum Solvent Distillation Recovery Machine

Main Technical Parameters

1. Distillation Medium: Hydrocarbon cleaning agent (MD‑210, C₁₁H₂₄)

2. Power Supply: 3‑phase 380V/50Hz

3. Power Rating: 46 kW

4. Maximum Distillation Capacity: 300 L/h

5. Distillation Recovery Rate: ≥95%

6. Heating Method: Indirect heating by thermal‑conductive oil

7. Compressed‑air Pressure: 0.5～0.7 MPa

8. Cooling Water: 40 L/min, ≤20℃

9. Weight: 1200 kg

10. Dimensions: 1500(L) × 1350(W) × 2100(H) mm

11. Noise Level: ≤70 dB

Features

It adopts proprietary vacuum distillation technology to realize efficient, energy‑saving and safe recovery of hydrocarbon cleaning agents.

Distillation parameters can be freely adjusted according to the condition of hydrocarbon cleaning agents, making the equipment suitable for distillation of various hydrocarbon detergents.

Equipped with PLC automatic control system and touch‑screen operation panel for simple and convenient operation.

Automatic timed discharge of distilled waste oil ensures safe and reliable operation.

It can be directly connected to cleaning equipment to supply hydrocarbon vapor and achieve continuous distillation, which reduces operating costs and emissions.

Compact cabinet‑type structure saves installation space.

The vacuum solvent distillation recovery machine is dedicated industrial recycling equipment, mainly designed to regenerate waste organic solvents produced during industrial cleaning and production.

Working under negative‑pressure vacuum, the solvent reaches its boiling point at a much lower temperature. After evaporation, solvent steam enters the condenser and is cooled into purified solvent liquid for repeated use, separating sludge, oil residue and solid pollutants.

Adopts intelligent PLC control system, supports fully‑automatic feeding, distillation, condensation and automatic slag‑discharge. Multiple safety protections are equipped including over‑temperature, over‑pressure and anti‑dry‑burn protection.

Explosion‑proof configuration is optional for flammable solvents such as hydrocarbon solvent. It can work together with industrial chiller to provide stable cold source for condensation.

It helps enterprises reduce solvent consumption, cut waste‑liquid emission and achieve green & cost‑saving production. Customization on capacity and explosion‑proof grade is available.
